Recirculation / Neutralization Systems (RNS) from BHS control, filter, and recirculate water used for cleaning industrial batteries. This dramatically reduces volumes of contaminated wastewater, cutting down on disposal fees.

Recirculation / Neutralization Systems (RNS) from BHS control, filter, and recirculate water used for cleaning industrial batteries. This process cuts down on disposal fees by greatly reducing the output of contaminated wastewater.

Each model of RNS is equipped with a spray wand (spray wand in not included when combined with a BHS Battery Wash Cabinet) connected to a 10-foot (3 meter) hose. A 120 V / 1 PH external sump pump operates automatically to return battery wash water from the wash cabinet back to the RNS. The result is a steady source of battery wash water that complies with environmental regulations and reduces overhead.

In combination with a BHS Battery Wash Cabinet, the RNS creates a closed-loop system that contains and controls the water used for cleaning industrial batteries.

Water used to wash forklift batteries becomes contaminated with acidic residue, lead particles, and other potentially harmful substances. The EPA places strict limits on disposal of wastewater left over after battery washes.

Recirculation / Neutralization Systems from BHS allow you to reuse your wastewater rather than paying for compliant disposal or, worse, making a mistake while disposing of it in-house. Every model of RNS is designed to feed directly into Battery Wash Cabinets from BHS, creating a closed-loop system that can complete multiple washes with the same volume of water.

Contaminated water passes through a special filter which removes particles down to 5 microns. Filters are inexpensive and easy to replace when they fill up. Next, the system neutralizes the pH level of the water, removing the acidic content.

The RNS-4-SS provides another level of cleaning with an ozone water-purification system.

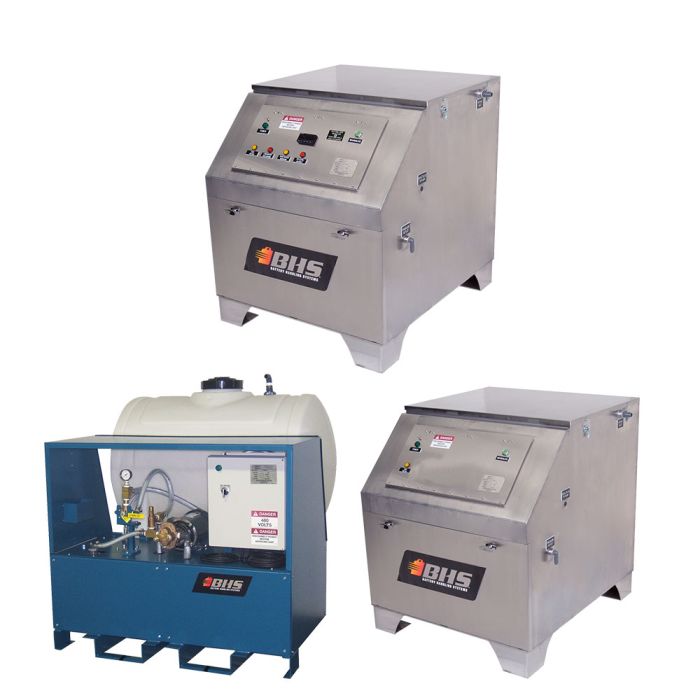

RNS-1

The RNS-1 comes standard with a 125 gallon (473 L) polyethylene tank. Voltages are available in 120 V & 240 V / 1 ph or 240 V & 480 V / 3 ph / 60 Hz. This machine is fitted with fork pockets for easily relocating the unit. A handheld pH meter allows staff to monitor pH levels throughout the neutralization process.

RNS-3-SS

The RNS-3-SS comes standard with a 200 gallon (757 L) integral tank and utilizes 120 V / 1 ph / 60 Hz power. A hand-held pH meter allows staff to monitor pH levels as they return to a safe state. The RNS-3-SS features an on-demand, automatic start system. An auto-shutoff for filter service or low water level makes maintaining the system simple and easy.

RNS-4-SS

The RNS-4-SS comes standard with a 200 gallon (757 L) integral tank and utilizes 120 V / 1 ph / 60 Hz power. An automatic pH monitoring system is what makes this model the most popular in the RNS family. The system automatically shuts down for unsafe pH range while warning lights alert the operator, who can inject neutralizer with the push of a button to bring the pH back in balance.

The RNS-4-SS features an on-demand, automatic start system. An auto-shutoff for unsafe pH range, filter service, or low water level makes maintaining the system simple and easy. This ecologically friendly system also boasts a built-in ozone purification system.


Features & Benefits

RNS-1

RNS-3-SS

RNS-4-SS

Filters down to 5 microns

Easy filter replacement

Rotary gear pump features stainless steel internal parts for extended component life

Removable front panels for convenient maintenance

Closed loop system (when coupled with a BWC) eliminates water supply and floor drains†

50 psi at 12 gal/min for high-flood battery wash-down

70 psi at 12 gal/min for high-flood battery wash-down

Standard fork pockets make it easy to move when clean-out is required

In-line pH monitoring system aids in keeping proper pH level

Includes a separate handheld pH meter to assist in monitoring pH levels

Fewest number of components in the industry lowers operating costs

Works with manual or automatic BHS Battery Wash Cabinets

On-demand, automatic start system

100-micron bag filter insert captures larger particles

Auto shut-off for pH out of safe operating range

Auto shut-off and indicator light for filter service

Auto shut-off for low water level

Adjustable timed recirculation mode for pH adjusting

Built-in ozone purification system

*Spray wand is not included when combined with a BHS Battery Wash Cabinet.

† Battery wastewater must be properly treated and meet all applicable environmental regulations prior to disposal.

RNS-1

RNS-3-SS

RNS-4-SS

Input Voltage

120/240 V / 1 ph / 60 Hz

240/480 V / 3 ph / 60 Hz

120 V / 1 ph / 60 Hz

120 V / 1 ph / 60 Hz

AC Current Draw

15 / 7.5 A 1 ph

4 / 2 A 3 ph

15 A

15 A

Water Pump Capacity

12 gal/min @ 50 psi

45 L/min @ 3.5 bar

12 gal/min @ 70 psi

45 L/min @ 3.8 - 4.8 bar

12 gal/min @ 70 psi

45 L/min @ 3.8 - 4.8 bar

Water Pump Motor

1.5 hp / 1.12 kW

1.5 hp / 1.12 kW

1.5 hp / 1.12 kW

Sump Pump Capacity

24 gal/min / 91 L/min

24 gal/min / 91 L/min

24 gal/min / 91 L/min

Reservoir Capacity

125 gal / 473 L

200 gal / 757 L

200 gal / 757 L

Water Outlet

0.75” NPT

0.75” NPT

0.75” NPT

Return Inlet

1” NPT

1” NPT

1” NPT

Filter Particle Size (Main/Return)

(4) 5 micron / N/A

(3) 5 micron / 100 micron

(3) 5 micron / 100 micron

Overall Width

49” / 1245 mm

42.4” / 1077 mm

42.4” / 1077 mm

Overall Length

52” / 1321 mm

48” / 1219 mm

48” / 1219 mm

Overall Height

53” / 1346 mm

48.6” / 1234 mm

48.6” / 1234 mm

Weight

500 lb / 227 kg

600 lb / 272 kg

600 lb / 272 kg

pH Metering Type

Manual - Hand Held Meter

Manual - Hand Held Meter

Automatic - Inline System

pH “Out of Limit” Cutout

-

-

Automatic

Add Water Indicator

-

-

Light

Low Water Level Cutout

-

Automatic

Automatic

High Water Level Indicator

-

-

Light

Recirculation Mode

Manual - On/Off

Timed - Adjustable

Timed - Adjustable

Neutralizing System

-

-

Manual

Ozone Purification

-

-

Automatic

Video Resources

Recirculation / Neutralization System
