Hardwood Battery Stations
Only %1 left
SKU
HBS

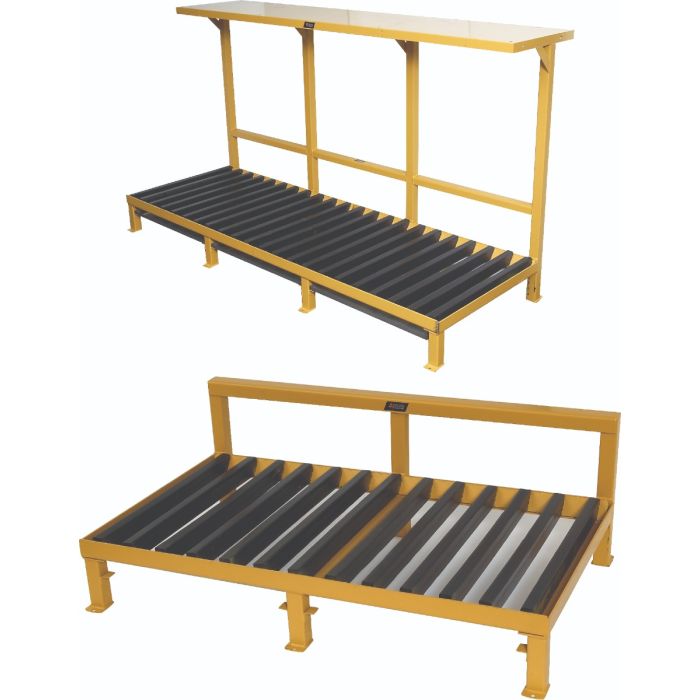

BHS Hardwood Battery Stations (HBS) are an ideal battery storage solution for BHS Gantry Cranes and other overhead extraction applications. Models are available with a variety of shelf configurations and can be custom-built to your specifications. Drip pans are available for all configurations.
BHS Hardwood Battery Stations (HBS) are an ideal battery storage solution for BHS Gantry Cranes and other overhead extraction applications. These rugged stations have a heavy-duty frame and a powder-coat finish for added durability.
The station's recycled polyethylene decking is acid-resistant, nonconductive, and environmentally friendly. A tapered dust rail in the center of the stand prevents accumulation of debris and residue.
Corner-formed Drip Pan Kits are available to catch spilled electrolyte and protect warehouse floors from pitting and corrosion. These custom-fitted pans slide in and out for quick and easy maintenance.
A charger shelf comes standard on all models of the HBS. Anchoring slots fit most models of chargers and Cable Retractor mounting holes aid in cable management.
Models are available with a variety of shelf widths and can be custom-built to your specifications. Call 1.800.BHS.9500 to speak to our sales team or to find a local dealer.
Features and Benefits
- Heavy duty frame construction for added reliability
- Charger shelf standard on all models
- Decking made of recycled polyethylene is acid resistant, nonconductive and environmentally friendly
- Custom-built models made to your specifications
- 12" (305 mm) standard height from floor to top of plastic interlay
- CR-1 Cable Retractor mounting holes
- SB connector mounting holes
- Charger shelves come slotted allowing for optional 6" (152 mm) shelf extension between stands
- Charger anchoring slots for securing most makes of chargers
- Drip pans available
- Dust rail constructed at tapered angle in center of stand preventing accumulation of debris
|
Model |
Overall Stand Width |
|
HBS-30 |
30” (762 mm) |
|
HBS-42 |
42” (1067 mm) |
|
HBS-60 |
60” (1524 mm) |
|
HBS-72 |
72” (1829 mm) |
|
HBS-84 |
84” (2134 mm) |
|
HBS-96 |
96” (2438 mm) |
|
HBS-108 |
108” (2743 mm) |
|
HBS-120 |
120” (3048 mm) |
|
HBS-144 |
144” (3658 mm) |
Video Resources
Hardwood Battery Stations
