Battery Lifting Beams

Only %1 left

SKU

BLB

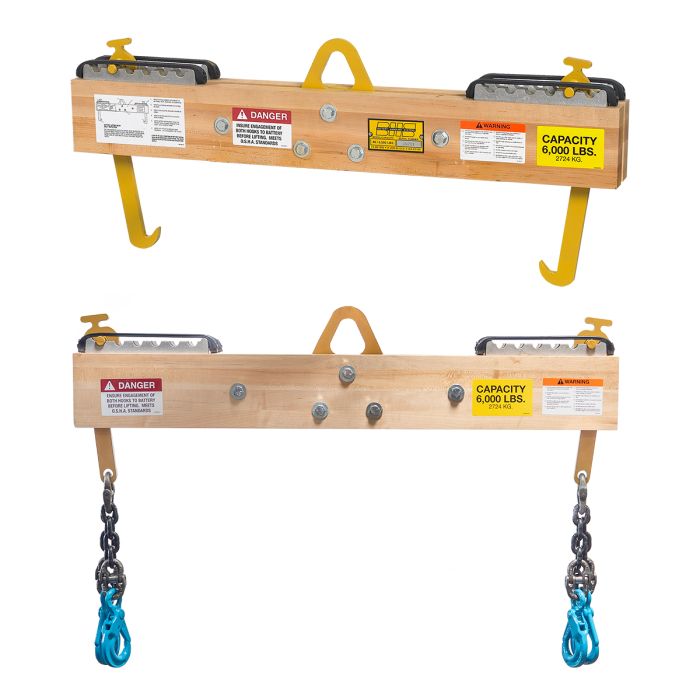

This Battery Lifting Beam is made of hardwood construction and provides a convenient way to handle industrial batteries. Various models and hook options available. Lifting capacity is 4,000 lb, 6,000 lb or 8,000 lb.

Overview

BHS Battery Lifting Beams are designed for integration with Gantry Cranes systems, or can be used in conjunction with a BHS Fork Attachment and forklift, for completing a safe and efficient solution for vertical-extraction battery handling applications. These Lifting Beams feature non-conductive hardwood construction with adjustable hook positions (fixed hooks are optional). For batteries that have four integrated attachment points, the Battery Lifting Beam-Four Point offers greater stability and control during the change-out process. With capacities ranging from 4,000 lb. to 8,000 lb., each lifting beam offers a convenient and efficient way to handle industrial forklift batteries.

Each attachment hook hangs from heavy-duty chains that lead to an adjustable steel anchor to accommodate batteries of various sizes. Fleets that use a single uniform battery size can opt for fixed hooks on each end, and the full range of BHS hook configurations is available for every order. Hook options (including a fixed position, Load Hog, Super Hog, Slide-Latch and Load-Lok hooks) are available for applications in different settings, and adjustable hook positions allow for use with batteries of different lengths. Optional grab handles can provide a better grip when an operator needs additional control.

Whether you are using an overhead bridge crane or a lift truck, battery lifting devices from BHS provide the balance and support you need to handle industrial batteries safely. This Gantry Crane attachment provides safe and durable control over forklift batteries in vertical-extraction applications. The hardwood core of the beam provides reliable, non-conductive support for batteries.

All Forklift Battery Handling Beams are constructed out of hardwood and heavy-duty, powder-coated steel in the BHS factory in St. Louis, Missouri. If you have unique needs, our engineers can alter or design a Battery Handling Beam to match your application. Contact our sales team at 1.800.BHS.9500 for more information or for a list of dealers in your area.

Features & Benefits

Non-conductive, hardwood construction
Multiple hook options available
Adjustable hook positions for use with multiple battery lengths
4,000 lb (1815 kg) , 6,000 lb (2722 kg), or 8,000 lb (3629 kg) capacities available
45" or 52" overall length
Proudly designed and manufactured in the USA

Specifications

MODEL	CAPACITY	DESCRIPTION	CLEAR SPAN (S1–S2)	LENGTH (A)	WEIGHT
BLB-4000	4,000 lb / 1815 kg	Lifting Beam w/ Standard Hooks	27.5”–42.5” / 699 mm–1080 mm	45” / 1143 mm	58 lb / 26 kg
BLB-4000-LHG	4,000 lb / 1815 kg	Lifting Beam w/ Load Hog Hooks	27.5”–42.5” / 699 mm–1080 mm	45” / 1143 mm	58 lb / 26 kg
BLB-4000-LLH	4,000 lb / 1815 kg	Lifting Beam w/ Load-Lok Hooks	27.5”–42.5” / 699 mm–1080 mm	45” / 1143 mm	58 lb / 26 kg
BLB-4000-SHG	4,000 lb / 1815 kg	Lifting Beam w/ Super Hog Hooks	27.5”–42.5” / 699 mm–1080 mm	45” / 1143 mm	60 lb / 27 kg
BLB-4000-SLD	4,000 lb / 1815 kg	Lifting Beam w/ Slide Latch Hooks	27.5”–42.5” / 699 mm–1080 mm	45” / 1143 mm	60 lb / 27 kg
BLB-6000	6,000 lb / 2722 kg	Lifting Beam w/ Standard Hooks	27.5”–42.5” / 699 mm–1080 mm	45” / 1143 mm	58 lb / 26 kg
BLB-6000-LHG	6,000 lb / 2722 kg	Lifting Beam w/ Load Hog Hooks	27.5”–42.5” / 699 mm–1080 mm	45” / 1143 mm	58 lb / 26 kg
BLB-6000-LLH	6,000 lb / 2722 kg	Lifting Beam w/ Load-Lok Hooks	27.5”–42.5” / 699 mm–1080 mm	45” / 1143 mm	58 lb / 26 kg
BLB-6000-SHG	6,000 lb / 2722 kg	Lifting Beam w/ Super Hog Hooks	27.5”–42.5” / 699 mm–1080 mm	45” / 1143 mm	60 lb / 27 kg
BLB-6000-SLD	6,000 lb / 2722 kg	Lifting Beam w/ Slide Latch Hooks	27.5”–42.5” / 699 mm–1080 mm	45” / 1143 mm	60 lb / 27 kg
BLB-6000-48	6,000 lb / 2722 kg	Lifting Beam-48 (52” OAL) w/ Standard Hooks*	35.5”–50.5” / 902 mm–1283 mm	52” / 1321 mm	110 lb / 50 kg
BLB-6000-48-SLD	6,000 lb / 2722 kg	Lifting Beam-48 (52” OAL) w/ Slide Latch Hooks*	35.5”–50.5” / 902 mm–1283 mm	52” / 1321 mm	112 lb / 51 kg
BLB-6000-48-LLH	6,000 lb / 2722 kg	Lifting Beam-48 (52” OAL) w/ Load-Lok Hooks*	35.5”–50.5” / 902 mm–1283 mm	52” / 1321 mm	110 lb / 50 kg
BLB-8000-48-SLD	8,000 lb / 3629 kg	Lifting Beam-48 (52” OAL) w/ Slide Latch Hooks*	35.5”–50.5” / 902 mm–1283 mm	52” / 1321 mm	110 lb / 50 kg

* Lifting Beam-48 model increases wood height by 2” (51 mm) and decreases hook underbeam clearance by 2” (51 mm)

Options

Fixed Position Hook (BLB-FXD-HK): Sets distance between hooks at a predetermined length, and is preferable when all batteries in fleet are approximately the same length. The length of battery must be identified at the time of order.
Grab Handle (BLB-HDL): Provides an improved grip when additional control is needed, and is for use on one end only
