Tugger Carts - Center Steer
Only %1 left
SKU
TT-CS
Tugger Carts (TT) from BHS offer bulk transportation of materials across floors and ramps, and hitch to one another to create high-volume material-handling trains. They are a crucial component of a pick-to-cart strategy, in which order pickers fill trailers to capacity, and tuggers travel in waves to collect items in batches. These industrial carts are ideal for order-picking applications, as a supplement or even a replacement for lift trucks.
Center Steer Tugger Carts (TT-CS) achieve exceptional maneuverability with a fifth caster in the center of the frame. This wheel is slightly larger than the others, allowing the entire unit to pivot in place. This makes the TT-CS ideal for pulling loads by hand, or in narrow aisles with tight turns.
The TT-CS can also function as part of a logistics train, vastly improving efficiency in order picking applications and raw-material delivery for manufacturers. Like all Tugger Carts from BHS, the TT-CS features heavy-duty steel construction and a powder coating that’s formulated to resist common sources of equipment damage in industrial applications.
Call the BHS sales team at 1.800.BHS.9500 to learn more about Center Steer Tugger Carts and other material handling solutions for your industry.
Features & Benefits
- Reduces order picking time by creating a pick train
- Safe, efficient material handling for manufacturing and warehousing applications
- Includes casters at each corner of the frame, with a single, slightly larger steer-wheel at the midpoint of the deck
- Large central wheel provides unmatched maneuverability
- 2,500 lb capacity models available
- Heavy-duty 6″ x 2″ polyurethane-on-steel casters

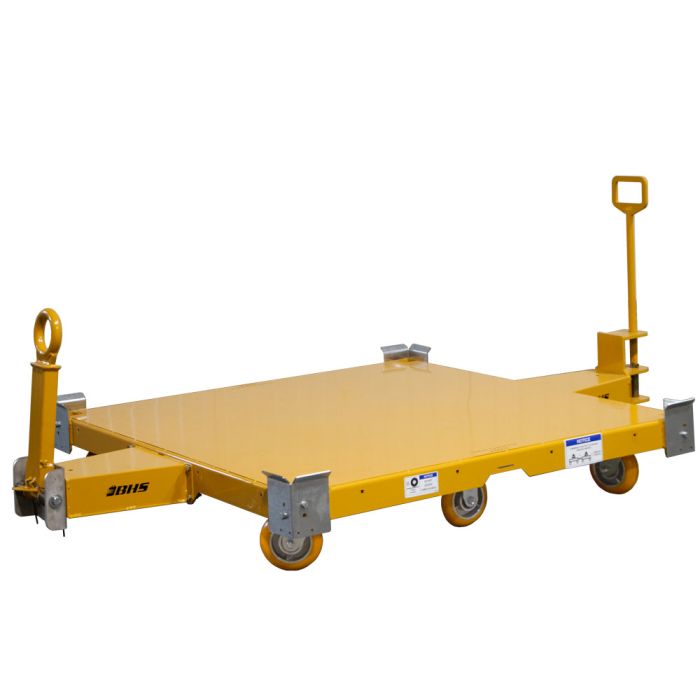

- Standard units include ring coupler and clevis hitch (custom tongue and spring-loaded auto latch pictured)
- Custom hitches available on request
- Travels in line behind tuggers for easier navigation
- Heavy-duty steel construction with high load limits
- Configurable to support any materials
- Compatible with all types of electric tuggers
- Custom builds available on request
|
MODEL |
WIDTH |
LENGTH |
DECK HEIGHT* |
CAPACITY |
WEIGHT |
|
TT-CS-3660 |
36” / 914 mm |
60” / 1524 mm |
6.75” / 171 mm |
2,500 lb / 1134 kg |
250 lb / 113 kg |
|
TT-CS-3672 |
36” / 914 mm |
72” / 1829 mm |
6.75” / 171 mm |
2,500 lb / 1134 kg |
275 lb / 125 kg |
|
TT-CS-4896 |
48” / 1219 mm |
96” / 2438 mm |
6.75” / 171 mm |
2,500 lb / 1134 kg |
500 lb / 227 kg |
|
TT-CS-5050 |
50” / 1270 mm |
50” / 1270 mm |
6.75” / 171 mm |
2,500 lb / 1134 kg |
275 lb / 125 kg |
*Varies based on casters selected
