Quad Stack Forklift Battery System Stands

SKU

BS-QS

BHS Quad Stack System Stands (BS-QS) provide the ideal location to charge, store, and exchange lift truck batteries with convenience and ease.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

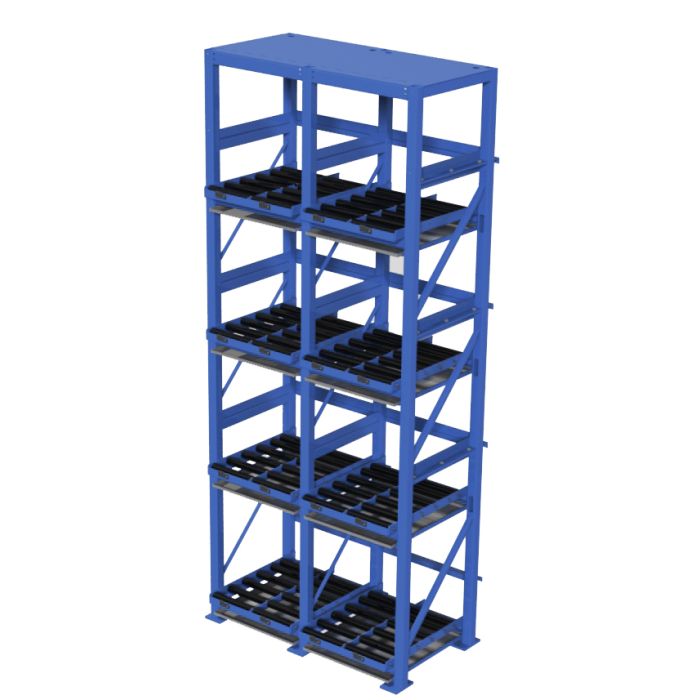

BHS Quad Stack System Stands (BS-QS) provide the ideal location to charge, store, and exchange lift truck batteries with convenience and ease. These heavy-duty, steel-constructed stands complement a Quad Stack Operator Aboard Battery Extractor to create an ideal battery-charging process.

Rearward-pitched battery slots assist in battery retention and welded system feet provide stability. Charger-cable mounting holes, charger anchoring slots, and auxiliary backstops protect valuable equipment and keep system stand impeccably organized.

The BS-QS features spark-proof, poly-sleeved rollers that extend product life and reduce corrosive buildup. Available models offer compartment widths from 15 inches to 48 inches making them compatible with almost any lift truck fleet. Over a dozen compartment configurations, safety features, and other options are available to provide custom solutions for your operation.

Optimize your battery room with a Quad Stack System Stand from BHS. Contact our sales team at 1.800.BHS.9500 to learn more about BHS System Stands or to locate a dealer.

Features & Benefits

Six spark-proof, poly-sleeved rollers per compartment reduce corrosive build-up and extend product life
Models available in various compartment widths to accommodate batteries from 12” to 48” (305 mm to 1219 mm)
40” (1016 mm) standard compartment depth
Hitch pin-secured roller axles for ease of maintenance
Rearward-pitched battery slots to assist in battery retention
Welded system feet anchor to the ground for unfailing stability
Durable powder-coat finish resists scratches and corrosion
Charger connector mounting holes
Charger anchoring slots for securing most makes of chargers
Flip-up battery safety stop per compartment
Compatible with stainless steel Drip Pans which provide OSHA-compliant spill containment
Custom designs available to fit all battery changing requirements
Foot pad dimensions: 0.75” x 6” x 8” (19 mm x 152 mm x 203 mm)
Charger cable routing holes help protect cables from damage
Auxiliary backstops (if required) provide compartment depths from 27.5” to 40” (699 mm to 1016 mm) pending battery specifications*

* Consult Factory

Specifications

Model	Roller Compartment Width	Frame Width
BS-15-8-QS	15" / 381 mm	38" / 965 mm
BS-15-16-QS	15" / 381 mm	73" / 1854 mm
BS-18-8-QS	18" / 457 mm	44" / 1118 mm
BS-18-16-QS	18" / 457 mm	85" / 2159 mm
BS-21-8-QS	21" / 533 mm	50" / 1270 mm
BS-21-16-QS	21" / 533 mm	97" / 2464 mm
BS-24-8-QS	24" / 610 mm	56" / 1422 mm
BS-24-16-QS	24" / 610 mm	109" / 2769 mm
BS-30-4-QS	30" / 762 mm	38" / 965 mm
BS-30-8-QS	30" / 762 mm	73" / 1854 mm
BS-36-4-QS	36" / 914 mm	44" / 1118 mm
BS-36-8-QS	36" / 914 mm	85" / 2159 mm
BS-42-4-QS	42" / 1067 mm	50" / 1270 mm
BS-42-8-QS	42" / 1067 mm	97" / 2464 mm
BS-48-4-QS	48" / 1219 mm	56" / 1422 mm
BS-48-8-QS	48" / 1219 mm	109" / 2769 mm

Options

Catwalk (BS-CW): Provides walk area for charger maintenance and comes standard with front rail
Ladder (BS-LDR): Provides easy access to catwalk used for charger maintenance
End Rail (BS-CW-ER): Encloses charger servicing area on end of system
Rear Rail (BS-CW-RR): Encloses charger servicing area on rear of system
Extended Compartment Depth (-46): Increases roller compartment depth to 46” (1168 mm)
Extended Compartment Depth (-48): Increases roller compartment depth to 48” (1219 mm)
Extended Compartment Depth (-50): Increases roller compartment depth to 50” (1270 mm)
Drip Pan (DP): Contains spills, maintaining a cleaner, safer environment
Poly Lead Roller: Replaces the first roller in each compartment with a polyethylene roller to eliminate potential bearing failure in frequent change-out environments
Rubber Backstop (BS-RBR-STP): Cushions battery during placement into stand Note: One per stand required, slightly reduces compartment depth
Sliding SB Connector Kit (#80892001): Allows SB connector to be moved and secured anywhere along the length of the SB connector bracket
Rear Strut Mount (BS-RSM): Mount vertical style chargers along the rear of multi-level battery stands on a welded strut channel
Top Strut Mount (BS-TSM): Mount vertical style chargers above multi-level battery stands on a welded strut channel. Adequate clearance required.
