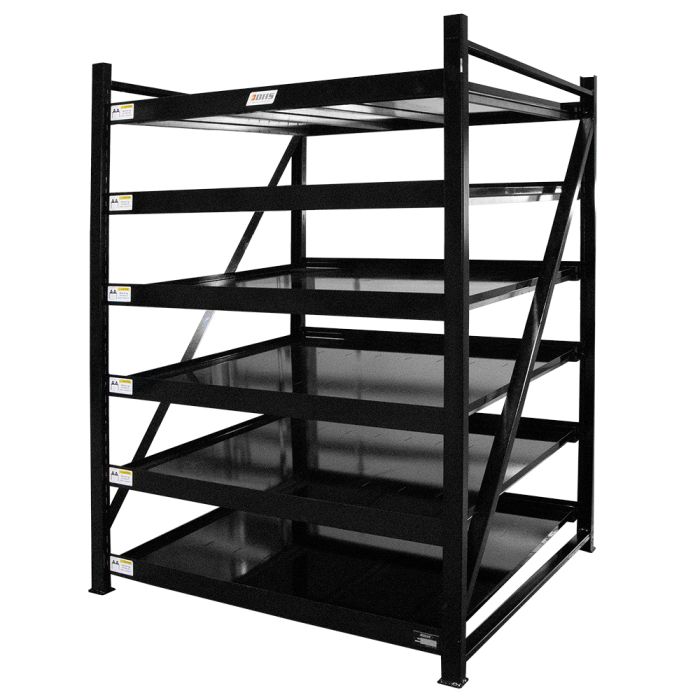

Modular Storage Rack, 6-Shelves with Adjustable Dividers

This customized Storage Rack from BHS is a modular rack design that allows the components to ship knocked down flat, reducing freight costs when multiple units are required. Simple slot-and-tab construction allows the rack to be quickly assembled with no tools or hardware required while the modular design allows the rack configuration to be customized to match any storage need.

Each rack comes with 6 fully-lipped shelves that can be installed in two ways. Install the shelves level for a conventional style storage rack; install the shelves at a slight forward angle a create a flow-through rack allowing stock to automatically move forward as product is removed. Install some shelves flat and some angled for even more versatility. Optional drop-in divider plates (not included) allow individual shelves to be divided into 10 separate compartments, taking customization to a whole new level. With a continuous array of slots on each upright, shelves can be installed in 1.75” (44 mm) intervals to provide just the right amount of space between each shelf.

Explore BHS Shelving & Racking or discuss your application requirements by calling the BHS sales team at 1.800.BHS.9500.

Features & Benefits

• Overall Dimensions: 53.25” (1353 mm) wide x 48.5” (1232 mm) deep x 72.25” (1835 mm) tall
• Usable Shelf Space: 47.8” (1214 mm) wide x 45.8” (1163 mm) deep
• 518 lb (235 kg) Weight
• 1200 lb (544 kg) Total Capacity, 200 lb (91 kg) capacity per shelf
• Six shelves included
• Approximate 2.2 degree tilt when installed angled forward
• 1” (25 mm) side shelf lips
• 2” (51 mm) front & rear shelf lips
• 1.75” (44 mm) shelf position increments
• 9.25” (235 mm) shelf spacing when all 6 shelves installed and evenly spaced
• Optional 2” (51 mm) tall, drop-in shelf dividers *
• Eight divider* positions per shelf with 4.9” (124 mm) minimum divider spacing
• Heavy-duty steel construction for added reliability
• Durable powder coat finish in Gloss Black resists corrosion and scratches
• Custom designs available

* Shelf dividers not included and sold separately.
