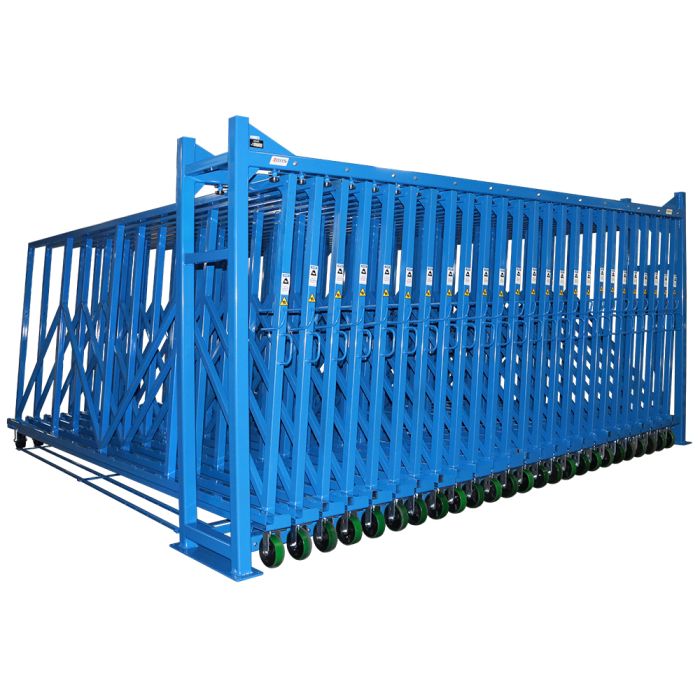

Vertical Sheet Rack System

The Vertical Sheet Rack System from BHS provides full-service storage for sheet metal, glass panels, stone slabs, and similar products—all in roll-out drawers that save space while providing quick, easy access. Drawers extend to expose the entire face of the sheet, making this unit compatible with vacuum lifts, sheet lifts, magnets, hoists, forklifts, and other material handling systems.

Each drawer stores sheets of up to 12 feet by 6 feet (3.66 meters by 1.83 meters), and 2 inches (5 centimeters) thick, with a maximum weight capacity of 2,000 pounds (907 kilograms). That can be a single large sheet or multiple smaller sections. The stock VSRS comes standard with 5, 10, 15, 20, or 25 drawers, and custom units are available to meet any capacity. A steel, powder-coated frame combines with reinforced drawers and heavy-duty guide tracks to provide reliable service with heavy usage, even in the harshest industrial environments.

Rear V-groove casters lock into reinforced guide tracks to allow a single employee to easily access sheet products on the drawer. Welded pull handles improve ergonomics during operation. The slightly angled design keeps materials firmly in place as the drawer slides in and out of the frame. And lateral support bars on the frame offer convenient storage for remnant pieces.

Sheet materials are critical for a wide variety of industries, including automotive, aviation, energy, chemical processing, manufacturing, plastics, printing, and tool/die production. The BHS Vertical Sheet Rack System provides dependable, space-saving storage in all these industries and more—with capacities to match any demand.

Contact BHS at 1.800.BHS.9500 to learn more about sheet material storage solutions, or to find your local dealer.

Features & Benefits

• High-capacity sheet material storage with space-saving design
• Single-user operation
• Angled vertical drawers keep products safely contained
• Each drawer stores sheets of up to 12’ x 6’, with a 2” depth (3.66 m x 1.52 m x 5 cm); maximum sheet dimensions vary by model
• Per-drawer maximum weight capacity of 2,000 lb (907 kg)
• Standard unit comes with either 5, 10, 15, 20, or 25 drawers
• Custom units contain any number of drawers
• Lateral support bars store remnant pieces
• Steel, powder-coated frame for extreme durability
• Reinforced guide tracks ensure smooth travel for drawers
