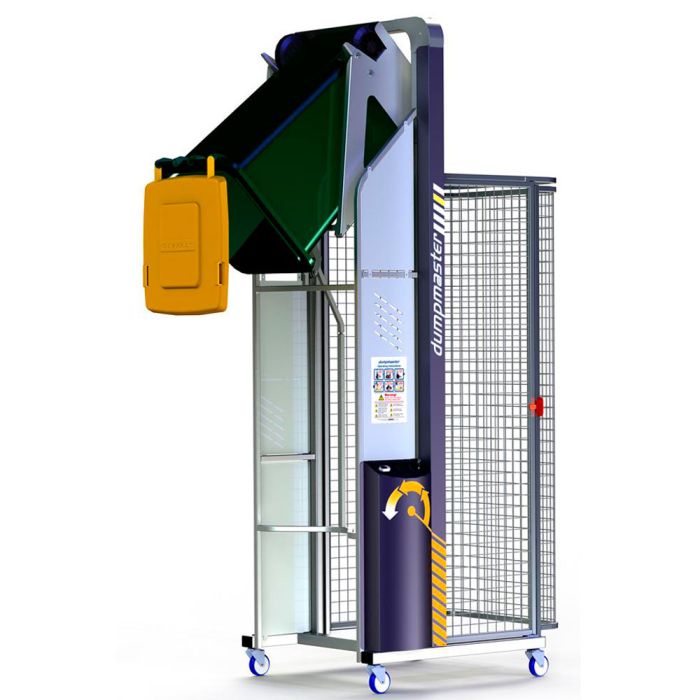

Dumpmaster® Hydraulic Bin Dumper

SKU

Easily empty bins and drums weighing up to 550 lb (250 kg) at tipping heights ranging from 27.5”–106” (700–2700 mm) with the Dumpmaster Bin Dumper.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Dumpmaster® Bin Dumpers are the ultimate solution for emptying bins and drums weighing up to 550 pounds (250 kilograms) at virtually any height. The dumping action of a Dumpmaster is one of the safest, most efficient, and easiest-to-use systems in the world. The Dumpmaster is the workhorse of the Simpro line and has been widely used in Australasia for the past 25 years. The unique, safe dumping action keeps bin weight within footprint.

Dumpmaster works with popular bin designs, from 24 to 96 gallon (90 to 360 Liter) configurations, without needing adjustments. Custom cradles are available to suit other bin or drum sizes.

This state-of-the-art bin dumper is available with a number of optional features including Battery Power or 3-Phase Power, a Solar Panel, Operator Guard, and more.

Contact the BHS sales team at 1.800.BHS.9500 to find out more or to locate your nearest dealer. Download a comprehensive PDF above for more information about the Dumpmaster Bin Dumper.

Features & Benefits:

Suits popular bin sizes from 24 gal to 96 gal (90 L to 360 L)
550 lb (250 kg) load capacity
Various tipping heights from 27.5” to 106” (700 mm to 2700 mm)* but can be built economically at any height up to 236" (6000 mm)
Typical Duty Cycle: 22,000 lb (1000 kg) of material per charge or 11,000 lb (5000 kg) per hour on continuous charge
Available with battery, 3-phase, solar, or compressed-air supply; battery-powered dumpers have a sealed battery and an industrial-quality ‘float’ charger built in
Powerful and reliable hydraulic mechanism
Industrial grade galvanized steel frame and cradle with zinc-plated guarding
Weight of bin stays within machine footprint throughout dumping cycle to ensure stability
Custom cradles available to suit other bins and drums
Indoor or outdoor use
Simple, weather-proof controls
4” (100 mm) casters, two with brakes

Important information about the Bucket Cradle option: Powder coated steel bucket cradle includes adjustable hoop retainer and adjustable packer blocks. Bolted to the main tote cradle plates, the Bucket Cradle accommodates all tubs that fit within 27” wide, 24” deep, 47” high, including all standard steel drums and Brute Bins.

* Tip Height is approximate as it varies by bin being dumped.

Specifications

Model Specifications

MODEL	TIP HEIGHT	CAPACITY	POWER SOURCE	OVERALL LENGTH	OVERALL WIDTH	OVERALL HEIGHT	WEIGHT	IP RATING	SAFETY RATING
DM0700 **	27.5" (700 mm)	550 lb * (250 kg)	Battery † 3-Phase ‡	46” (1175 mm)	38” (965 mm)	69” (1760 mm)	≈ 353 lb (≈ 160 kg)	IP56 *	CAT1/PLc *
DM1500	59” (1500 mm)					101” (2560 mm)	≈ 463 lb (≈ 210 kg)
DM1800	71” (1800 mm)					112.5” (2860 mm)	≈ 485 lb (≈ 220 kg)
DM2100	83” (2100 mm)					124” (3160 mm)	≈ 573 lb (≈ 260 kg)
DM2400	94.5” (2400 mm)					136” (3460 mm)	≈ 617 lb (≈ 280 kg)
DM2700	106” (2700 mm)					148” (3760 mm)	≈ 661 lb (≈ 300 kg)
Custom	Don’t see what you’re looking for? Contact us to discuss customization.
* Upgradable Specification ** The DM0700 model is normally specified as the Dockmaster, optimized for emptying bins from elevated loading docks and platforms, see Dockmaster page for details. † Battery powerpack, 24v/20Ah sealed GEL (3hr charge on 100-264VAC1-ph50/60Hz ≤ 3A); unit includes sealed battery and industrial quality 'float' charger. ‡ 3-Phase Mains powerpack, ≈ 415VAC 3-ph 50/60Hz ≤ 3.6A.

Options

Auto-Cycle Operation
Available for mains-powered bin dumpers to enable operators to leave the machine to complete the cycle unattended.

Bin Hooks
Secure the dumper to a bin or skip with two adjustable hooks.

Bolt Down Kit
Secure the dumper with four galvanized steel lugs for permanent installation.

Custom Controls
Operator controls can be mounted anywhere on the machine or remotely to suit productivity or safety requirements. Dual-hand controls are also available to prevent the operator from engaging in other interactions.

Custom Designs
Contact us with your specific requirements.

Digital Scales
Platform scales fit under cradle, allowing product to be weighed before dumping.

Foot Guard Panels
Foot guards prevent operators’ feet from going under the machine frame.

Left-Hinged Door
The door on standard Dumpmaster ® machines is hinged on the right-hand side and Dockmaster on the left. Doors hinged on opposite are available.

Off Road Kit
Four 8” (200 mm) hard-rubber wheels (2 fixed, 2 swivel) for uneven surfaces.

Operator Guard
Unbreakable plastic guarding panel can be fitted adjacent to operator controls to shield operator from liquids or harmful materials.

Polycarbonate (PET-G) Guarding
Unbreakable plastic guarding panels are available in place of the standard 1” x 1” (25 mm x 25 mm) wire mesh cage.

Safety Standards
Bin dumpers can be specified to meet international standards and/or CE regulations for an additional cost, depending on environment, application, and other factors

Solar Panel (Battery-powered units only)
Battery-powered bin dumpers being used outside can be fitted with a solar panel. Depending on the amount of direct sunlight available, up to two tons (1814 kg) can be emptied per day using solar power alone.

Stainless-Steel Construction
Bin dumpers are available either partially or completely constructed from high-grade 304 stainless steel, suitable for hygiene-critical or corrosive environments such as food production or chemical processing. Corrosion-resistant lifting chains and fittings are also available.

Steel Bucket Cradle
Powder coated steel bucket cradle includes adjustable hoop retainer and adjustable packer blocks. Bolted to the main tote cradle plates, the Bucket Cradle accommodates all tubs that fit within 27” wide (686 mm), 24” deep (609.5 mm), 47” high (1194 mm), including all standard steel drums and BRUTE® Bins.

Swing-Up Locking Door
Instead of the standard side-hinged door, opt for the swing-up door, supported by gas struts and protected by a solenoid operated lock. The door is locked while a bin is lifted or lowered, and the machine cannot run while the door is open.

Tipping Chute
Frame-mounted tipping chute is available for situations where the machine cannot be flush with the bin or hopper. Note: the tipping height may need to be increased to accommodate the slope of the chute.
