Compartment Roller Trays
Only %1 left
SKU
CRT

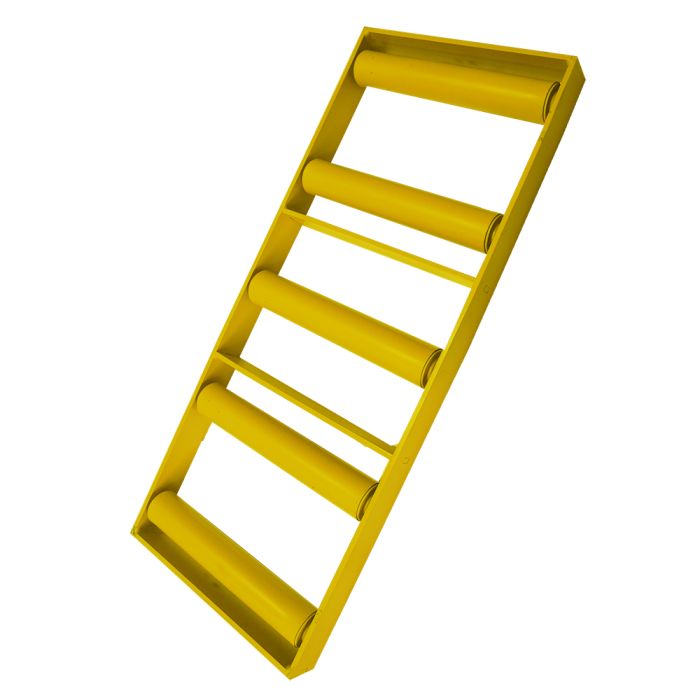

Compartment Roller Trays are engineered to assist in converting a forklift battery compartment from overhead extraction to side extraction.
BHS Compartment Roller Trays (CRT) help to convert forklift battery compartments from overhead extraction to side extraction for faster, safer battery changes.
Converting forklift fleets to lateral battery extraction can improve efficiency, reduce the risk of accidents, and lower operational costs, especially in larger fleets. Learn more about the differences between overhead and side extraction here.
Choose Compartment Roller Trays in any of three sizes, with a standard 2.19-inch height, 30-inch length, and widths of 7, 12, or 16 inches. Standard CRTs come equipped with five roller tubes and a minimum 1,200-pound capacity. Alternatively, you can have a roller tray customized to meet your own specifications.
Roller Trays from BHS are built for ease-of-use and efficiency. Heavy duty construction ensures reliability and the OSHA Safety Yellow powder coating resists acid, scratches, and impact.
Learn about the benefits of side extraction, CRTs, and the entire line of Compartment Roller Trays by calling the BHS sales team at 1.800.BHS.9500.
Features & Benefits
- Engineered for ease and efficiency
- 2.19" (56 mm) standard height; 30" (762 mm) length
- Heavy duty construction for added reliability
- Other sizes built to specifications
|
CRT-7 |
CRT-12 |
CRT-16 |
|
|
Width (A) |
7” / 178 mm |
12” / 305 mm |
16” / 406 mm |
|
Length (B) |
30” / 762 mm |
30” / 762 mm |
30” / 762 mm |
|
Height (C) |
2 3/16” / 56 mm |
2 3/16” / 56 mm |
2 3/16” / 56 mm |
|
No. of Rollers |
5 |
5 |
5 |
|
Capacity |
1,200 lb / 544 kg |
1,200 lb / 544 kg |
1,400 lb / 635 kg |
|
Color |
OSHA Safety Yellow |
OSHA Safety Yellow |
OSHA Safety Yellow |
|
Roller Material |
1 7/8” OD Tube x 13 Ga. Wall 48 mm OD Tube x 2.4 mm Wall |
1 7/8” OD Tube x 13 Ga. Wall 48 mm OD Tube x 2.4 mm Wall |
1 7/8” OD Tube x 13 Ga. Wall 48 mm OD Tube x 2.4 mm Wall |
|
Frame Material |
1/4” x 2” / 6 mm x 51 mm |
1/4” x 2” / 6 mm x 51 mm |
1/4” x 2” / 6 mm x 51 mm |
|
Mounting Requirement |
Drop-in or Tack Weld |
Drop-in or Tack Weld |
Drop-in or Tack Weld |
