Walkie Transfer Carriages
Only %1 left
SKU
WTC

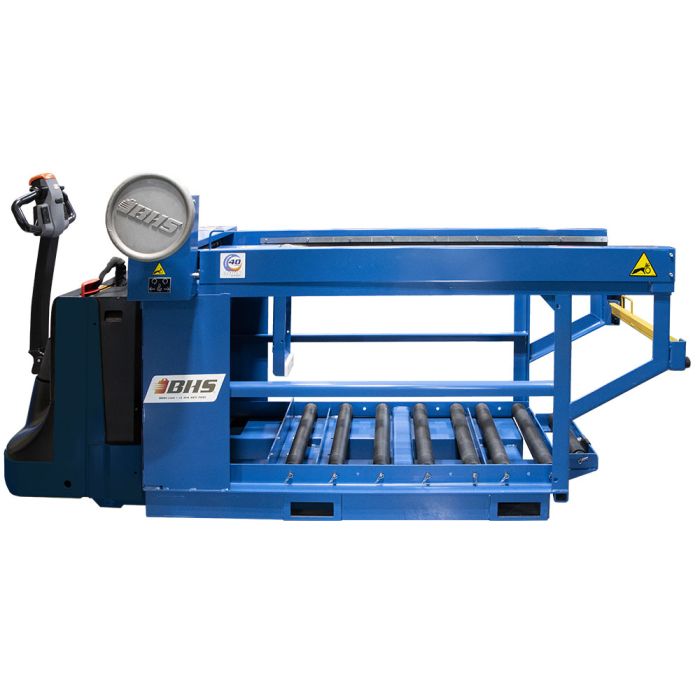

Manual industrial forklift battery changer with one forklift battery compartment and is mounted to your pallet truck.
The BHS Walkie Transfer Carriage (WTC) is a non-powered battery changer designed for smaller battery fleets. The WTC mounts to the user’s existing pallet truck to change batteries in side-extraction applications.
The WTC comes in three models and offers a dependable and versatile battery changing system at an affordable cost. Its simple design makes maintenance easy, and its heavy-duty construction provides rugged durability in harsh warehouse conditions.
The Walkie Transfer Carriage uses hook-and-chain extraction and comes standard with a hand wheel for positive control of the extractor arm. The large, poly-sleeved and spark-proof rollers on the WTC-24 reduce corrosive build-up and increase product life.
With over a dozen optional features, warehouse managers can customize the Walkie Transfer Carriage to fit perfectly with their lift truck fleet. Drop-in rollers, three-way fork pockets, and permanent mounting are just a few of the many available add-ons.
Boost productivity by customizing a Walkie Transfer Carriage and reducing your change-out times. Contact our sales team at 1.800.BHS.9500 to find out more about Battery Carts and Carriages or to find a local dealer.
Features & Benefits
- Heavy-duty construction for added reliability
- Mounts easily to powered pallet truck—consult BHS for pallet truck specifications
- Simple design made for easy maintenance
- Large 2.4” (61 mm) diameter rollers standard
- Hook and chain extraction
- Hand wheel for positive control of the extractor arm
- Spark-proof, poly-sleeved rollers reduce corrosive build-up and extend product life (WTC-24 only)
- Battery Containment Bar encloses compartment to secure battery during transport
- Rubber Bumpers protect the industrial lift truck fleet during battery change-out
- Extractor Arm Latch automatically locks extractor arm in place when retracted
|
WTC-24 |
WTC-30 |
WTC-36 |
|
|
Max. Load Capacity 1 |
2,950 lb / 1338 kg |
3,400 lb / 1542 kg |
4,000 lb / 1814 kg |
|
Battery Attachment |
Hook & Chain |
Hook & Chain |
Hook & Chain |
|
Primary Drive Reduction |
4.5 to 1 |
4.5 to 1 |
4.5 to 1 |
|
Primary Drive Chain Size |
#35 |
#35 |
#35 |
|
Rated Draw Bar Pull |
50 lb / 23 kg Force @ Handwheel = 600 lb / 272 kg @ Extractor Arm |
50 lb / 23 kg Force @ Handwheel = 600 lb / 272 kg @ Extractor Arm |
50 lb / 23 kg Force @ Handwheel = 600 lb / 272 kg @ Extractor Arm |
|
Full Travel Arm 2 |
22 Revolutions of Handwheel |
22 Revolutions of Handwheel |
22 Revolutions of Handwheel |
|
Push/Pull Drive Chain Size |
#50 |
#50 |
#50 |
|
Extractor Arm Drive Device |
12” / 305 mm Diameter Finger Safe Handwheel |
12” / 305 mm Diameter Finger Safe Handwheel |
12” / 305 mm Diameter Finger Safe Handwheel |
|
Minimum Service Aisle Width Required 3 |
12’ / 3.66 m |
12’ / 3.66 m |
12’ / 3.66 m |
|
Roller Diameter |
2.4” / 61 mm |
2.4” / 61 mm |
2.4” / 61 mm |
|
Roller Shaft Size |
7/16” Hex / 11 mm |
3/4” Hex / 19 mm |
3/4” Hex / 19 mm |
|
Battery Width |
6” Min / 23” Max |
6” Min / 29” Max 152 mm Min / 737 mm Max |
6” Min / 35” Max 152 mm Min / 889 mm Max |
|
Battery Length 4 |
12” / 305 mm Min |
12” / 305 mm Min |
12” / 305 mm Min |
|
Overall Length |
64.25” / 1632 mm Standard 71.25”/ 1810 mm CAN-7 Option 78.25“ / 1988 mm CAN-14 Option |
64.25” / 1632 mm Standard 71.25”/ 1810 mm CAN-7 Option 78.25“ / 1988 mm CAN-14 Option |
64.25” / 1632 mm Standard 71.25”/ 1810 mm CAN-7 Option 78.25“ / 1988 mm CAN-14 Option |
|
Overall Width |
37.5” / 953 mm |
43.5” / 1105 mm |
49.5” / 1257 mm |
|
Overall Height |
46.25” / 1175 mm |
46.25” / 1175 mm |
46.25” / 1175 mm |
|
Base to Roller Height |
3” / 76 mm |
3” / 76 mm |
3” / 76 mm |
|
Roller Width |
24.5” / 622 mm |
30.5” / 775 mm |
36.5” / 927 mm |
|
Extended Arm Reach (Beyond Roller Bed) |
4” / 102 mm Standard 11” / 279 mm CAN-7 18” / 457 mm CAN-14 |
4” / 102 mm Standard 11” / 279 mm CAN-7 18” / 457 mm CAN-14 |
4” / 102 mm Standard 11” / 279 mm CAN-7 18” / 457 mm CAN-14 |
|
Rated Draw Bar Pull |
1,000 lb / 453 kg |
1,000 lb / 453 kg |
1,000 lb / 453 kg |
|
Average Holding Force |
750 lb / 340 kg Vacuum 775 lb / 351 kg Magnet |
1,000 lb / 453 kg Vacuum 775 lb / 351 kg Magnet |
1,000 lb / 453 kg Vacuum 775 lb / 351 kg Magnet |
|
Service Weight (unloaded) |
525 lb / 238 kg |
635 lb / 288 kg |
700 lb / 317 kg |
Notes: BHS recommends that high-speed travel be disabled on pallet truck and maximum speed set at turtle or lowest setting.
- Verify capacity of pallet truck being used at the specified load center. Load center increases by 0.5” (13 mm) for every inch of battery over 38” (965 mm) in length. Certain options may affect load capacity. Consult factory.
- Standard length (non-cantilever units) only.
- Varies with size and length of pallet truck and selected WTC options.
- Consult factory for additional options.
