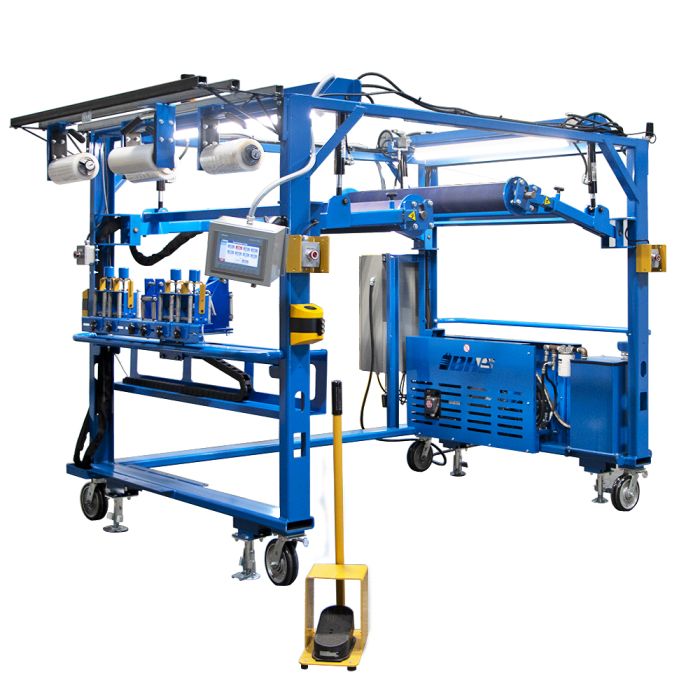

Spool Winding Trolley PLUS

Leverage the power of data to improve your cut-to-length cable distribution infrastructure. The Spool Winding Trolley PLUS (SWT-PLUS) is a stand-alone payout engine that ships fully wired, complete with its own software package.

Like the SWT-LITE model, the SWT-PLUS rolls over existing jack stands, allowing smooth, labor-saving payout without moving reels. A range of included features allow users to customize their unit for any set of tasks, including clamping cable, wrapping cut-to-length orders, and mounting additional tools on the frame itself.

Cut-to-Length Wire Distribution

Digital components of the SWT-PLUS allow users to pre-program jobs through an integrated touchscreen. The SWT-PLUS is a crucial order fulfillment system, automating orders on the payout floor. In this era of just-in-time fulfillment, the SWT-PLUS is indispensable.

Learn more about electrical handling solutions from BHS by calling the sales team at 1.800.BHS.9500 today.

Features & Benefits

• All SWT-PLUS units include a touchscreen operator interface
• Overhead rim drive rotates take-up reels while cable counter tracks linear footage, eliminating waste
• Pay out multiple cables to multiple compartment reels at once
• Control slide gives operator full control over coiling for the highest possible yield per compartment reel
• Adjustable-length overhead rollers accommodate a wide range of reel diameters and configurations
• Maximum reel width of 48”
• Ideal for use with any PRP unit
• Counter 1:1 ratio – one revolution = 1 linear foot of cable
• Cable counter integrated with HMI software allows users to set different units of measurement and reset instantly
• Dual, 6” diameter, urethane-coated rollers create secure contact with various spool and reel types
• Hydraulic-actuated roller arms for powered positioning
• Direct-coupled hydraulic drive motor for reliable performance
• Low-speed for precise control when beginning and finishing spooling
• High-speed to minimize total spooling time
• Wireless pendant push-button and foot pedal controls allow complete control of the spooling process
• LED lights on each end of the SWT unit improve operator visibility in low-light environments
• An overhead tool mount rail on the operator side of unit for operator convenience.
• Wrap cut-to-length jobs on the fly with the Stretch Wrap Holder, mounted directly above the counter.
• Strobe light and audible alarm notify bystanders when machine is in operation.
• Proudly designed and manufactured in the USA
