RNS Replacement Pump Kit
SKU
80572004

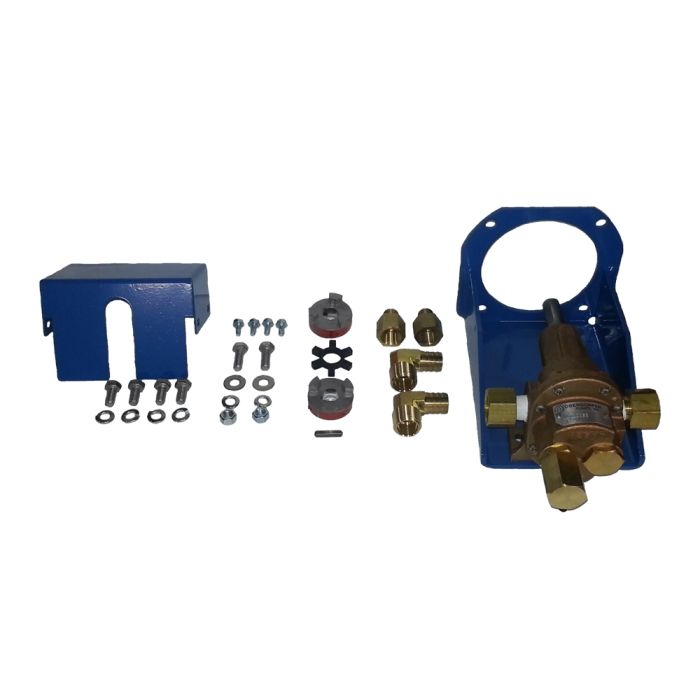

Includes pump, mount, and all required hardware. Replaces PB0120.
Replaces PB0120
| QTY | Part # | Description |
|---|---|---|
| 1 | 42517029-2 | Pump Mount |
| 1 | PB0130 | Pump |
|
2 |
HC0314 | Coupling, Half |
|
1 |
HC0316 | Coupling Insert |
| 2 | SS0116 | Bolt, HHCS - 3/8in-16 x 1" - stainless |
| 4 | SS0115 | Bolt, HHCS - 3/8in-16 x 3/4in - stainless |
| 6 | SS0402 | Washer, Lock - 3/8in - stainless |
| 2 | SS0302 | Washer, Flat - 3/8in - stainless |
| 2 | HW0005 | Nut, Hex - 3/8in-16 |
| 2 | PB0410 | Adaptor, #12 NPT x #8 NPT |
| 1* | PB0415 | Elbow, 90 deg - #12 NPT x 1in barb |
| 2** | PB0605 | Elbow, 90 deg - #12 NPT x 3/4in barb |
| 1 | 42517030-2 | Pump Cover |
| 4 | HW0301 | Bolt, Self Tap "F" - 1/4in-20 x 1/2in |
*PB0415 req'd for RNS-1 units.
**PB0605-1 req'd for RNS-3 & -4 units.
Note:
Pump and bracket assembly is shimmed for proper alignment from the factory. Removing and installing the pump on an existing bracket will cause misalignment of the pump and motor possibly causing premature coupling and/or pump failure.
