Order Picker Furniture Platform

Only %1 left

SKU

OPPMF

Order Picker Furniture Platforms attach to the longer forks of furniture order pickers, creating a safe, stable surface for large or awkwardly shaped loads.

Overview

Get the most out of furniture picker trucks with an order picker platform built to handle large, awkward loads. Order Picker Furniture Platforms feature modular design that allows you to configure the unit for specific jobs, all while expanding the usefulness of your order picker fleet.

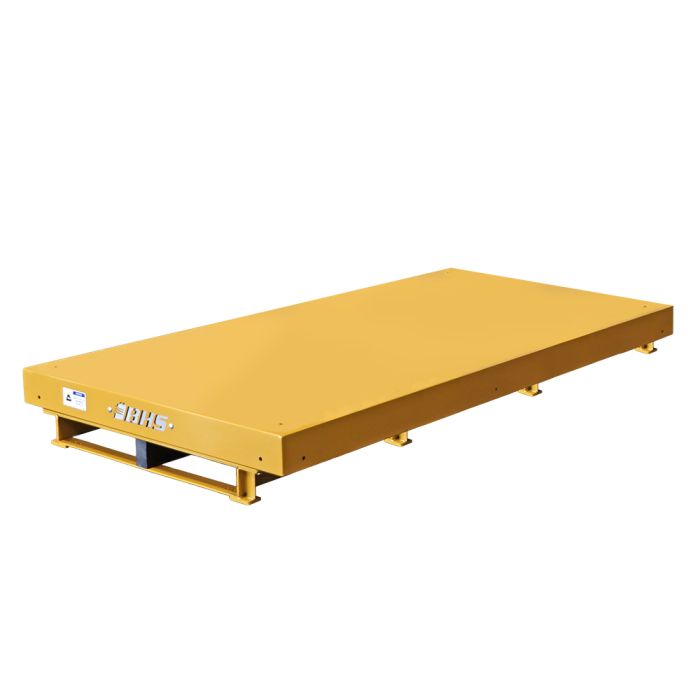

Order Picker Furniture Platforms are steel flat decks with integrated fork pockets, sized for the longer forks of furniture order pickers. Use them to handle bulky loads, whether that’s furniture, heavy equipment, nonstandard containers, or anything too big for standard order pickers. Flat-deck design ensures near-universal compatibility, with no shelves or push handles to get in the way.

Modular construction allows you to configure each platform for specific use cases, via bolt-on components. Add Adjustable Fork Guides to create a tighter fit with your order picker truck. Choose Anti-Skid Tape and/or Handrails to expand the truck’s operator compartment. Or simply get a Custom Color and Lasered Logo to match your brand.

Order Picker Furniture Platforms are part of the BHS family of order picker attachments, which also includes Modular Order Picker Carts, Modular Order Picker Platforms, and Order Picker Furniture Carts. Contact our sales team at 1.800.BHS.9500 to learn more.

Features & Benefits:

Expands working and storage areas for furniture order picker trucks
Modular design with bolt-on components for flexible service
Options include Adjustable Fork Guides, Anti-Skid Tape, Handrails, and more
Custom height for flush alignment with operator platform, eliminating tripping risk
Light-weight, high-strength construction optimizes capacity for furniture order picker trucks
Custom colors, sizes, and shapes available on request
Proudly designed and manufactured in the USA

Specifications

MODEL	WIDTH	DEPTH	PLATFORM HEIGHT	CAPACITY	WEIGHT
OPPMF-4072	40” (1016 mm)	72” (1829 mm)	9.9” (252 mm)	2,000 lb (907 kg)	145 lb (66 kg)
OPPMF-4084		84” (2134 mm)			158 lb (72 kg)
OPPMF-4090		90” (2286 mm)			170 lb (77 kg)
OPPMF-4096		96” (2438 mm)			180 lb (82 kg)
OPPMF-4272	42” (1067 mm)	72” (1829 mm)			152 lb (69 kg)
OPPMF-4284		84” (2134 mm)			165 lb (75 kg)
OPPMF-4290		90” (2286 mm)			176 lb (80 kg)
OPPMF-4296		96” (2438 mm)			187 lb (85 kg)
OPPMF-4872	48” (1219 mm)	72” (1829 mm)			165 lb (75 kg)
OPPMF-4884		84” (2134 mm)			180 lb (82 kg)
OPPMF-4890		90” (2286 mm)			192 lb (87 kg)
OPPMF-4896		96” (2438 mm)			205 lb (93 kg)
OPPMF-6072	60” (1524 mm)	72” (1829 mm)			180 lb (82 kg)
OPPMF-6084		84” (2134 mm)			195 lb (89 kg)
OPPMF-6090		90” (2286 mm)			207 lb (94 kg)
OPPMF-6096		96” (2438 mm)			220 lb (100 kg)

Notes:

When ordering, identify the vertical offset between operator platform and top of fork. This allows the factory to size the platform to sit flush with the operator’s platform. See last page, diagram A.
Overall dimensions may vary depending upon modular options.

Options

Fork Pockets (OPCMF-FP): Open fork pockets enable proper attachment of the cart to the order picker truck. Maximum outside of fork width is 30”. Consult factory to ensure correct size is ordered.
Adjustable Fork Guides (OPCMF-FP-GUIDE): Bolt-in, galvanized panels reduce outside fork pocket dimension to 27”, 25”, or 23” depending on installation position, creating a tighter fit within fork pocket compartment for any order picker truck.
Handrails (OPCMF-HR): Bolt-on steel handrails run entire depth and along back of deck. Includes kick plate and six safety harness attachment points. Adds 47.7” height to cart.
Anti-Skid Tape (SKIDTAPE): Textured tape on the platform deck adds traction.
Custom Lasered Logo (OPCMF-LOGO): Add a laser-cut logo plate to the rear of the cart to incorporate your company’s branding.
Custom Color: BHS Yellow is the standard powder-coat paint color for visibility in warehouses, however customers may choose from other colors. For more details, visit our Custom Colors webpage
