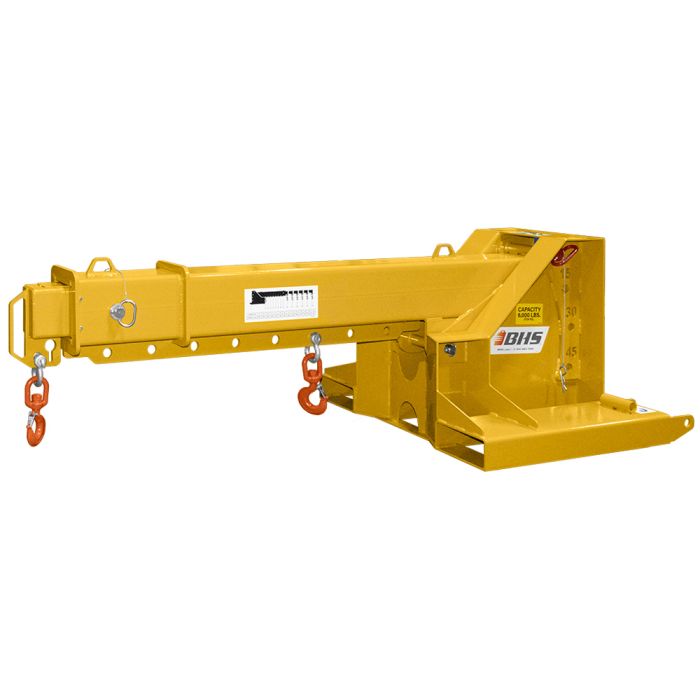

Manual Forklift Jib Boom, Extendable
Only %1 left
SKU
MFJBE
Lift heavy equipment, freight, and other industrial materials with the Manual Forklift Jib Boom, Extendable (MFJBE) from BHS.
Lift heavy equipment, freight, and other industrial materials with the Manual Forklift Jib Boom, Extendable (MFJBW) from BHS. Unlike most other jib cranes, this all-steel unit secures firmly to lift truck forks, creating a versatile, highly flexible solution for heavy-duty lifting. A single unit can be used in multiple locations indoors or out, providing a single-point solution for an entire operation's lifting needs.
A telescoping boom allows users to adapt the unit for multiple lifting applications, while the vertically pivoting base provides angular adjustment for extended lifting height. Steel construction with a durable powder coating makes these units ideal for manufacturing applications and other harsh industrial environments, while models with load capacities of 6,000 pounds fit seamlessly into existing operations.
Engineers from BHS will also design custom cranes to meet unique specifications, while the manufacturing team builds original equipment at a 148,000 square-foot facility in St. Louis, Missouri. Come to us with your material handling challenges and we will produce the crane that solves the problem permanently.
To learn more about custom options for Manual Forklift Jib Booms, or to locate your nearest BHS dealer, call 1.800.BHS.9500.
Features & Benefits:
- Lifts loads of up to 6,000 pounds (Note: as arm extends, capacity lowers)
- Ideal for automotive applications, heavy equipment manufacturing, and freight handling across the supply chain
- Low-maintenance, cost-effective, manual operation
- Prevents staff injury by eliminating dangerous lifts
- Heavy-duty steel construction
- Powder-coat finish resists damage, rust, and chemical corrosion
- Integrated fork pockets with heal pins for securing unit to forks
- Pre-drilled holes make the telescoping boom adjustable
- The boom manually tilts vertically to adjust the angle when more height is needed. Boom Pivot Angles (from horizontal) are 0°, 15°, 30° & 45°
- Forklift jib booms can be customized to fit most applications
|
Model |
Capacity |
Base Width |
Base Length |
Overall Height |
Fork Opening |
Overall Length (Retracted / Extended) |
Min. Hook Point Reach |
Max. Hook Point Reach (Retracted / Extended) |
Max. Capacity Fully Extended |
Weight |
|
MFJBE-6K |
6,000 lb (2,722 kg) |
31.5" (800 mm) |
32" (813 mm) |
27.5 " (699 mm) |
7.5" x 3.438" (190 mm x 87 mm) |
92.25" (2,343 mm) / 152.25" ( 3,867 mm) |
33" (838 mm) |
84" (2,134 mm) / 144" (3,658 mm) |
1,378 lb (625 kg) |
637 lb (289 kg) |
*Maximum capacity at closest hook point to forks (Minimum Hook Point Reach). Capacity decreases as the hook point extends away from forks.
