Hydrogen Exhaust Fan Kit

SKU

HEF-KIT

The BHS Hydrogen Exhaust Fan Kit (HEF-KIT) monitors hydrogen gas levels, activating operating alarms and ventilation fans when necessary to exhaust gases. The HEF-KIT is intended for use in battery charging rooms and other areas where hydrogen gas may be present.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

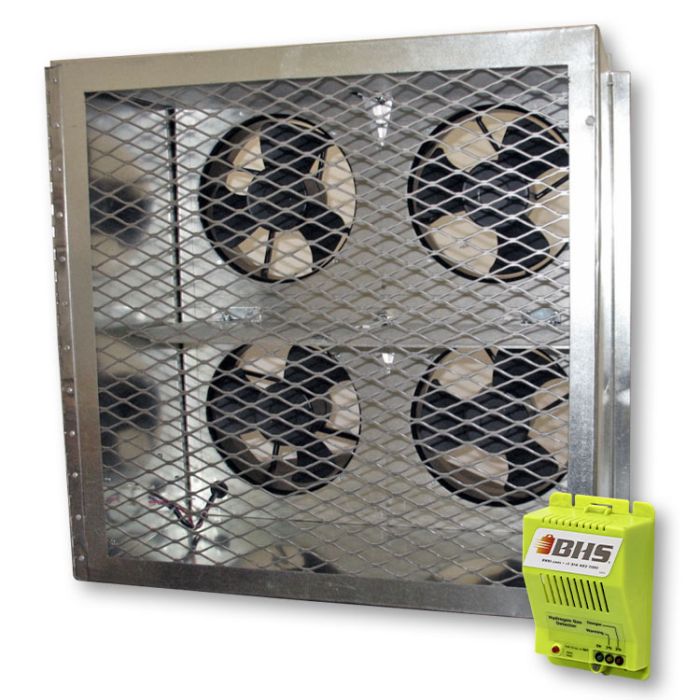

The HEF-KIT consists of a dual-relay Hydrogen Gas Detector and a Hydrogen Exhaust Fan. The Hydrogen Gas Detector monitors hydrogen gas and provides warning of increasing levels before they become dangerous. Should the concentration of hydrogen gas in the air surrounding the sensor reach 1% by volume, the yellow caution LED will light and the 1% internal relay will close. Should the hydrogen gas concentration reach 2% by volume, the red warning LED will flash and an 80 decibel alarm will sound; the 1% relay will remain closed and the 2% internal relay will close. The 1% relay will activate the Hydrogen Exhaust Fan for forced ventilation.

Specifications

DIMENSIONS	24” L x 24” W x 17” H (610 mm x 610 mm x 432 mm)
WEIGHT	Fan: 51 lb (24 kg), Rain shield and damper: 24 lb (11 kg)
MOUNTING	Requires 24 1/4” x 24 1/4" rough opening. 1 1/2” to 8” wall thickness.
POWER REQUIREMENTS	115 V ac, Grounded
AIRFLOW	(4) fans, each rated at 850 ft³/min, total 3,400 ft³/min N+1 (redundancy), (3) fans at 850 ft³/min, total 2,550 ft³/min for 2,550 ft³ (72 m³ ) area
