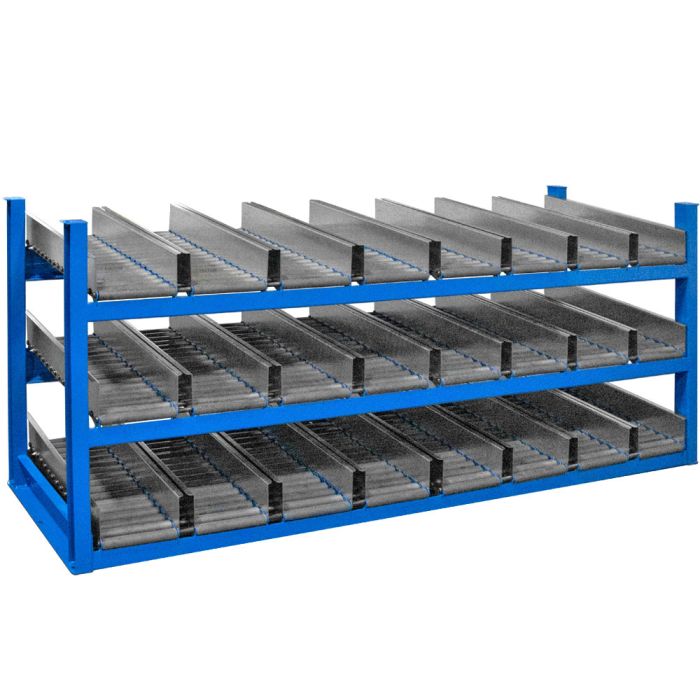

Gravity Flow Rack, 22 x 96 x 36 with 24 Roller Compartments

This custom Gravity Flow Rack allows product to be loaded into the angled roller compartments where the product continuously moves forward as inventory is removed from the front of the rack.

The angled roller comparments are equipped with free-spinning rollers allowing boxes or bins to smoothly move forward in the compartment, eliminating the need to physically manipulate inventory as empty product cartons or bins are removed. The rear of the Gravity Flow Rack is open allowing the unit to be restocked from the rear if positioned along an aisle or open area.

In addition to stock models, BHS offers unique custom designs. Discuss the options for your next Gravity Flow Rack by calling the BHS sales team at 1.800.BHS.9500.

Features and Benefits

• Overall Dimensions: 96" (2438 mm) wide x 22" (559 mm) deep x 36" (914 mm) tall
• 500 lb (227 kg) capacity
• 643 lb (288 kg) weight
• Structural, welded steel frame
• Durable powder coat finish resists both acid and scratches
• Improves workflow with inclined compartments to ensure stock rotation
• Twenty-four 9" (229 mm) wide roller compartments
• Seventeen 1.060" (27 mm) diameter PVC rollers per compartment
• 0.5" (13 mm) diameter roller shafts - 4.8 degree inclined compartments
• 10" (254 mm) clear above roller compartments - 3.375" (86 mm) tall galvanized compartment dividers
• Racks can be stacked 2-high
• Holes in sides of base-frame allow for anchoring units to the floor or workbench and bolting units together when stacked
• Tightly spaced rollers with 1.34" (34 mm) on centers allow for relatively small sized product to smoothly flow through rack
• This model is designed to allow product to flow completely through rack and onto additional racking or conveyors (not included)
• Optional product stops (not included) required to store product on this rack
• Optional 33" Leg Elevation with Locking Swivel Casters
• Custom designs available
