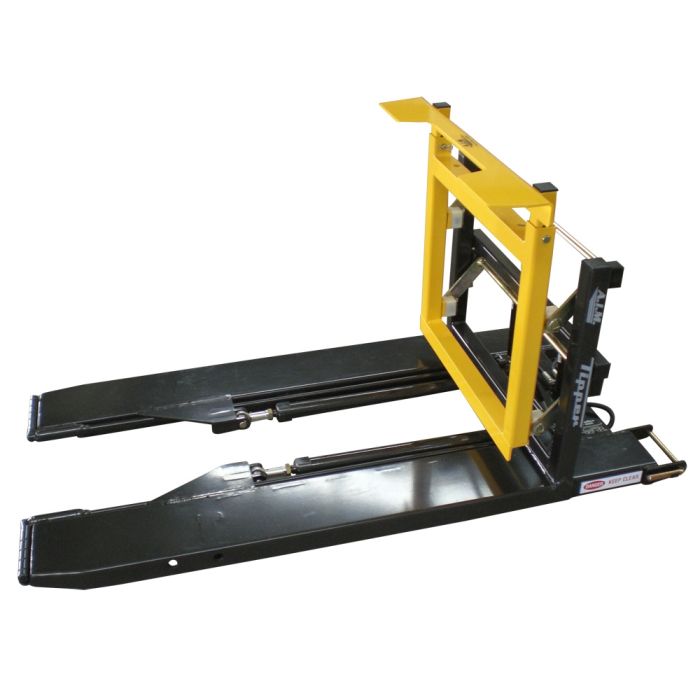

Forward Bin Dumper

The Forward Bin Dumper (FBT1000-760) is a forklift attachment that converts an existing forklift into a portable bin dumper perfectly suited for cubic bins, pallet bins, or megabins. The FBT1000-760 provides fast-controlled, hydraulic dumping action and is designed for quick and easy fitting onto or removal from a forklift while the operator remains in the forklift seat. The Forward Bin Dumper is gentle on bins, extending bin life, and suitable for a wide range of solid or vented cubic bin sizes and types made from plastic or timber. The clear-view design does not obstruct vision of tines and the unique bin grab applies a firm grip on a bin when inverted.

The Forward Bin Dumper’s 135 degree forward rotation ensures completed emptying of bin. It has a minimal loss of forklift load capacity and does not affect the forklift’s capacity to handle pallets or stacked bins. The FBT1000-760 is equipped with a safety catch which prevents dumping if the bin is not positioned correctly on the tines. The robust construction, powder-coat finish, stainless steel pivot pins, and long-life, zero-maintenance pivot bearings provide a trouble-free operation with minimal maintenance for years to come.

Features & Benefits

• Suitable for a wide range of cubic bin sizes & types – plastic or timber, solid or vented
• Standard unit suits 48" by 48" bins (1219 mm by 1219 mm)
• Safe working load capacity up to 2,205 lb (1000 kg)
• Fits standard forklift tines up to 42.125” x 1.75” x 4.92” (1070 mm x 45 mm x 125 mm)
• 135° forward rotation ensures complete emptying of bin
• Operator does not leave forklift seat
• Unique bin grab applies firm grip on bin when inverted
• Robust construction for years of trouble-free operation
• Powder coated finish
• Stainless steel pivot pins
• Long life, zero maintenance pivot bearings
• Safety catch prevents dumping if bin is not correctly on tines
• Total width across tines is 29.9” (760 mm)
• Lost load (on 42.125” [1070 mm] tines) is 11.8” (300 mm)
• Unit weight is 342 lb (155 kg)
• Horizontal center of gravity is 23.6” (600 mm)
• Vertical center of gravity is 3.54” (90 mm)
