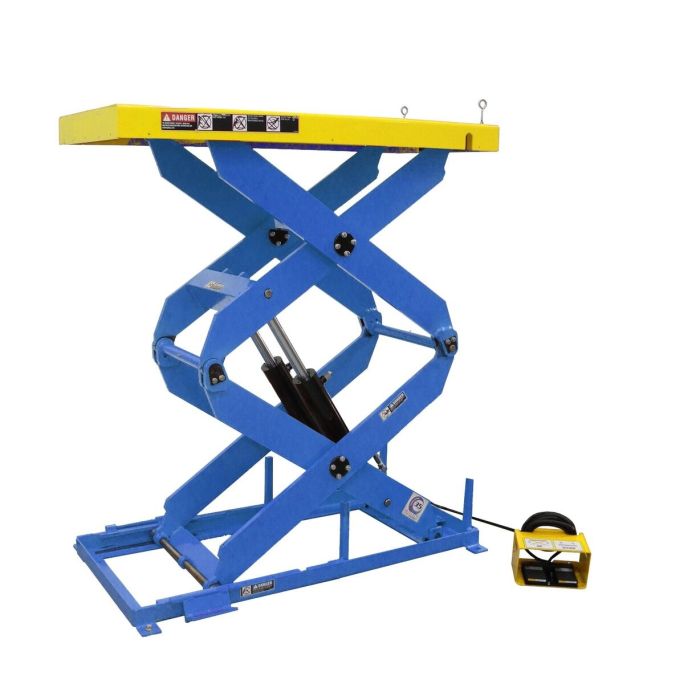

Dual Scissors Lift Table, 6,000 lb capacity
SKU
LTD6K
Engineered to provide safe and ergonomic positioning of loads up to 6,000 lb (2722 kg) by reducing bending, lifting, reaching, and strain at an affordable price.
The BHS Dual Scissor Lift Table vertically positions materials at increased heights for improved ergonomics and productivity. Engineered to provide safe and ergonomic positioning of loads up to 6,000 lb (2722 kg) by reducing bending, lifting, reaching, and strain at an affordable price.
BHS offers a number of alternate tabletops for the Dual Scissor Lift Table. Ball Transfer, Turntable, and Roller Conveyor tabletop attachments can make your operation even more effective, and they fit seamlessly with existing manufacturing processes. An Accordion Skirt Guard is available to enclose the underside of the lift table for extra protection from dirt and foreign objects.
Heavy-duty steel gives you years of reliable operation, while the included maintenance chocks let you lock the scissor lift for safety. BHS Dual Scissor Lift Tables are an excellent choice in warehouses, auto shops, and in dozens of other applications, and we offer a variety of options to suit your facility.
Contact your BHS dealer or call 1.800.BHS.9500 for ordering information and customization options. Download the PDF at the top of this page for full specifications.
Features & Benefits:
- 6,000 lb (2722 kg) capacity with many table widths available
- Dual Scissors extend vertical reach
- Heavy-duty, formed steel construction for added reliability
- 230/460 V ac / 3 ph / 60 Hz power unit standard
- Contoured scissor legs for improved precision, travel, and stability
- Floor mounting tabs with 0.75” (19 mm) diameter holes (anchors and hardware not included)
- Maintenance chocks included to lock scissors
- Full width through pivot shafts for stability throughout the travel range
- Durable, sealed and shielded roller bearings for maximum capacity and longevity
- Durable powder coat finish with yellow tabletop to improve visibility and safety
- Closed hydraulic circuit
- Heavy-duty braided wire hydraulic lines for maximum burst strength and longevity
- Hardened chrome piston rod and honed cylinder provide added column strength and cylinder sealing
- Equipped with thermal overload protection and velocity fuses for additional safety
- Hydraulic components contained within the lift table for maximum safety, floor space, and convenience
- NEMA floor toggle switch included for easily accessible up/down function control
- Meets ANSI Standard MH29.1:2012 for Industrial Scissor Lifts
|
Model |
Capacity |
Vertical Travel |
Table Height |
Table Dimensions |
Power Unit |
||||
|
Min |
Max |
Width |
Length |
HP |
Voltage |
Elevation Time |
|||
|
LTD6K-24-48 |
6,000 lb 2722 kg |
60.75” 1543 mm |
11.5” 292 mm |
72.188” 1834 mm |
24” |
48” 1219 mm |
* |
480 V ac / 3 ph / 60 Hz |
* |
|
LTD6K-24-53 |
6,000 lb 2722 kg |
60.75” 1543 mm |
11.5” 292 mm |
72.188” 1834 mm |
24” |
53” |
* |
480 V ac / 3 ph / 60 Hz |
* |
|
LTD6K-36-48 |
6,000 lb 2722 kg |
60.75” 1543 mm |
11.5” 292 mm |
72.188” 1834 mm |
36” |
48” 1219 mm |
* |
480 V ac / 3 ph / 60 Hz |
* |
|
LTD6K-48-48 |
6,000 lb 2722 kg |
60.75” 1543 mm |
11.5” 292 mm |
72.188” 1834 mm |
48” 1219 mm |
48” 1219 mm |
* |
480 V ac / 3 ph / 60 Hz |
* |
|
LTD6K-48-72 |
6,000 lb 2722 kg |
60.75” 1543 mm |
11.5” 292 mm |
72.188” 1834 mm |
48” 1219 mm |
72” |
* |
480 V ac / 3 ph / 60 Hz |
* |
* Consult Factory for HP and elevation times
