Gas Cylinder Cabinet

Only %1 left

SKU

GCC

Securely store industrial gas cylinders, like oxygen or acetylene, in a heavy-duty cage to protect contents and prevent tampering.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

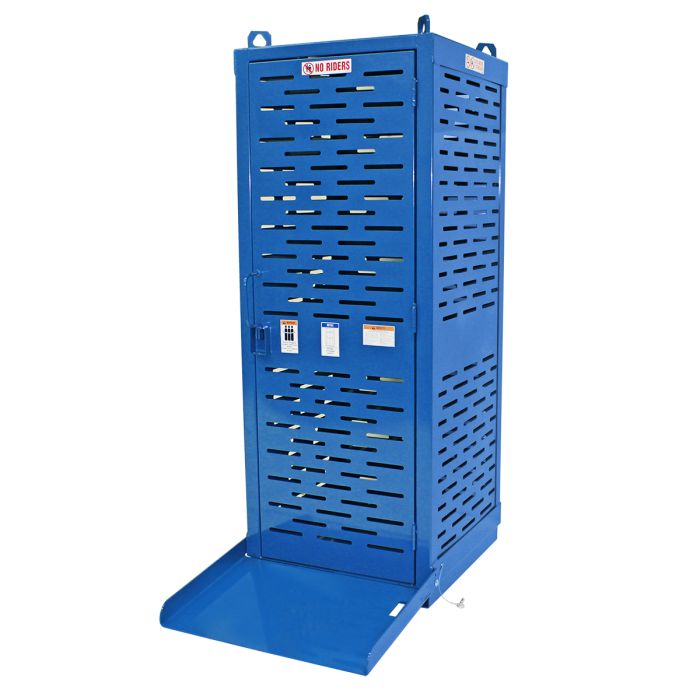

The Gas Cylinder Cabinet (GCC) is a heavy-duty formed and welded cage used to securely store industrial cylinders, like oxygen or acetylene. The walls and door are comprised of laser-slotted metal to provide security, visibility of contents, as well as natural ventilation. In addition to these features, the firewall model includes OSHA-compliant firewall separating compartments. The GCC can be transported by forklift.* The door hinges are welded for strength and the door can be locked to prevent unauthorized access.

Features & Benefits

Hinged ramp on front of unit for loading/unloading flips up and pin-secures when not in use
Welded-in strapping system allows for easy adjustments when securing cylinders
Heavy-duty welded steel cage used for storage of industrial cylinders
Two-way fork pockets and lifting eyes aid in relocation of unit*
GCC-20-FW stores Ten 9” diameter high-pressure or Six 12” diameter fuel-gas cylinders per side
Integral handle and locking system
Drain hole on inside platform
Custom builds available upon request

* Do not attempt to transport unit while loaded with gas cylinder(s)

Specifications

Model	Description	Overall Width	Overall Depth	Overall Height	Weight
GCC-9	Store (9) 9” diameter cylinders	32” / 813 mm	32” / 813 mm	84” / 2134 mm	385 lb / 175 kg
GCC-12	Store (12) 9” diameter cylinders	33” / 838 mm	42” / 1067 mm	84” / 2134 mm	460 lb / 209 kg
GCC-20	Store (20) 9” diameter cylinders	50” / 1270 mm	50” / 1270 mm	84” / 2134 mm	685 lb / 311 kg
GCC-20-FW	Store (10) 9” diameter high-pressure or (6) 12” diameter fuel-gas cylinders per side with OSHA-compliant firewall separating compartments	50” / 1270 mm	50” / 1270 mm	84” / 2134 mm	925 lb / 420 kg
