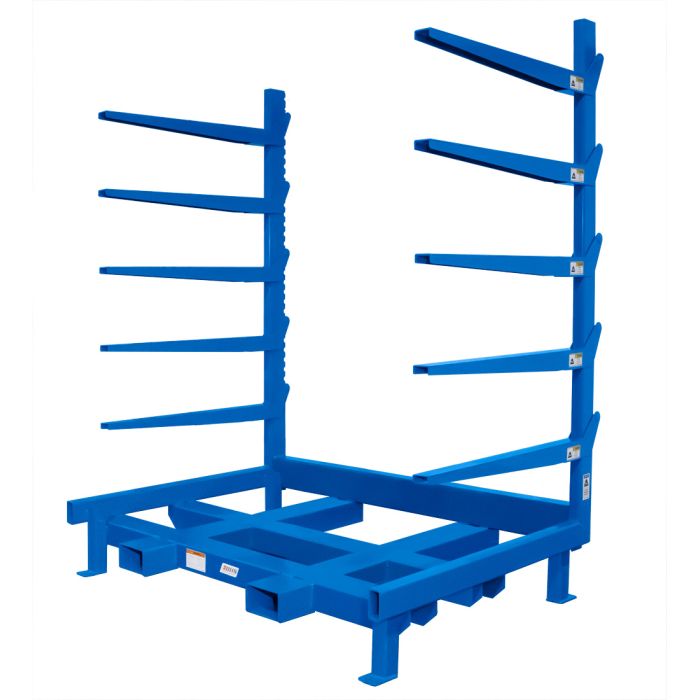

Cantilever Rack

Store long, narrow materials with the adjustable Cantilever Rack (CRA) from BHS. This steel-framed rack features five sets of cantilever shelf arms, each adjustable within 2-inch (50-millimeter) increments—so you can configure the rack to handle a wide variety of awkward materials, from metal tubes and bars to rectangular planters.

Add additional shelf arms, or remove them to accommodate taller products. With 36-inch (914-millimeter) arms and a carrying capacity of 500 pounds (227 kilograms) per shelf (total unit capacity: 3,000 pounds [1361 kilograms]), this Cantilever Rack handles high volumes to maximize operational throughput.

For more information about Cantilever Racks and other material handling solutions from BHS, Inc., call our sales team at 1.800.BHS.9500.

Features & Benefits

• Flexible cantilever storage for pipes, bars, rails, boxes, and other long, narrow materials
• Fork pockets enable transport by forklift when not in use
• Steel, powder-coated frame for enhanced durability
• Adjustable shelf height in 2” (50 mm) increments
• 5 sets of gravity-locking arms standard, with more available
• Removable shelf arms creates more usable height per shelf
• Carrying capacity of 250 lb (113 kg) per arm, 500 lb (227 kg) per shelf, and 3,000 lb (1361 kg) per rack
• Total unit dimensions: 90.6” H x 74.6” W (2.3 m x 1.9 m)
• Shelf arm support length: 39” (991 mm)

*CRA cannot be transported while carrying a load.
